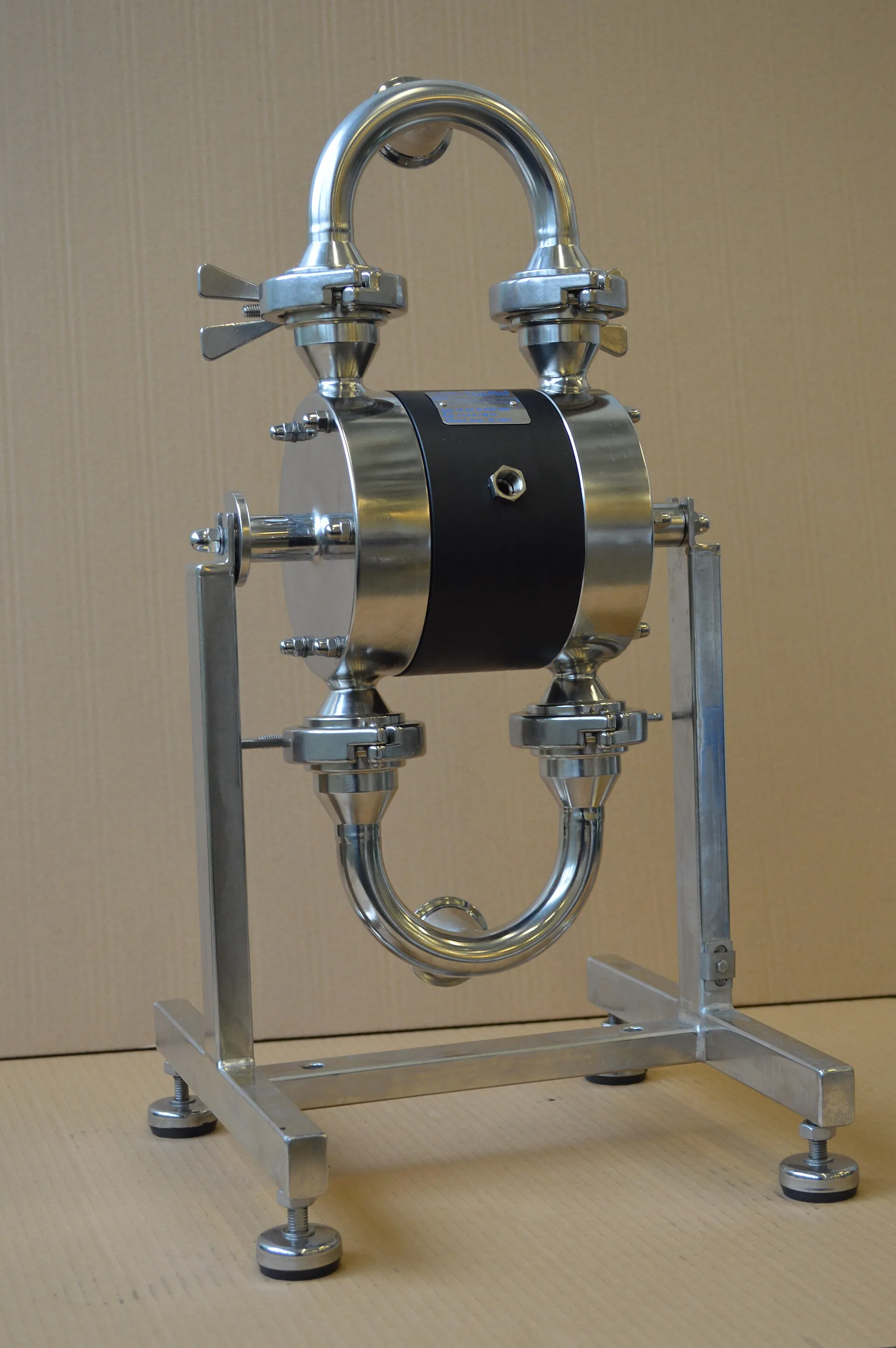

PTFE AODD Pumps
PTFE wetted parts deliver the highest chemical resistance available in AODD pumps — built for the toughest acid, solvent and halogen service.
Technical Specifications
| Parameter | Value |
|---|---|
| Size range | 1/4 in to 3 in |
| Max flow | up to 1000 LPM |
| Max head | up to 84 m |
| Max solids | up to 10 mm |
| Body material | PTFE lined / solid PTFE |
| Diaphragm | PTFE (one-piece or overlay) |
| Connections | NPT / BSPT threaded |
| Max temperature | up to 120°C |
Key Features
- ✅Resists 98% sulfuric acid, nitric acid, solvents and halogens
- ✅One-piece PTFE diaphragm options eliminate permeation
- ✅Zero cross-contamination — ideal for pure chemical transfer
- ✅Air driven — no motor, no electricity, explosion-proof
- ✅Handles shear-sensitive and solid-laden fluids
Applications
- Concentrated acid transfer (H2SO4, HNO3, HCl)
- Solvent and paint thinner handling
- Pharmaceutical intermediate transfer
- Halogen and chlor-alkali service
- Chemical drum emptying
FAQ
What chemicals can a PTFE AODD pump handle?
Nearly all aggressive chemicals including 98% sulfuric acid, aqua regia, solvents and halogens.
Is PTFE safe for food contact?
PTFE is FDA-listed for food contact; for sanitary service we also offer SS316 with PTFE diaphragms.
Why choose one-piece PTFE diaphragm?
One-piece construction prevents permeation failure in halogen and strong acid service.
Need a quote?
Send your flow rate, head, media and connection size — we'll confirm model and price within 24 hours.
