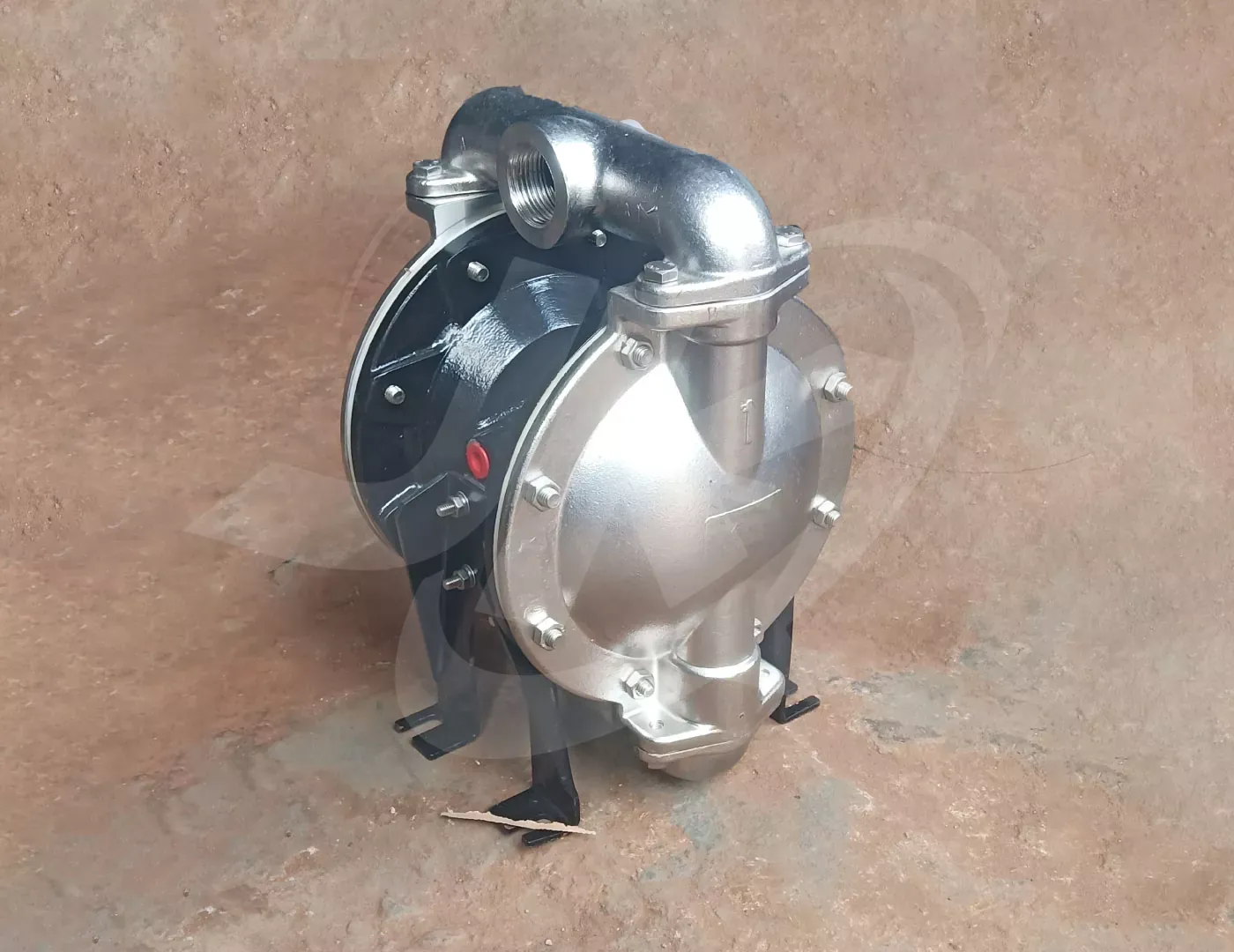

Stainless Steel AODD Pumps
SS316 stainless steel AODD pumps for hygienic and corrosive service — food, beverage, pharmaceutical and fine chemical transfer.
Technical Specifications
| Parameter | Value |
|---|---|
| Size range | 1/4 in to 3 in |
| Max flow | up to 1000 LPM |
| Max head | up to 84 m |
| Max solids | up to 10 mm |
| Body material | SS316 / SS304 |
| Diaphragm | PTFE / EPDM / Santoprene |
| Connections | NPT / BSPT / Tri-Clamp |
| Max temperature | up to 120°C |
| Surface finish | Ra ≤ 0.8 µm (sanitary) |
Key Features
- ✅Sanitary-grade SS316 with polished wetted surfaces
- ✅CIP/SIP compatible for food & pharma
- ✅Tri-Clamp connection options
- ✅No seals to leak — zero contamination
- ✅Low shear for shear-sensitive products
Applications
- Food & beverage transfer (juice, syrup, sauces)
- Dairy and CIP systems
- Pharmaceutical and biotech processing
- Fine chemical and cosmetic production
- Distilled spirits and brewing
FAQ
Is the stainless pump food-safe?
Yes — SS316 with FDA-compliant diaphragms and Ra ≤ 0.8 µm finish is suitable for direct food contact.
Can it run dry?
Yes — AODD pumps are inherently dry-run safe.
What clamp connections are available?
Tri-Clamp (sanitary), NPT and BSPT — we supply adapters to your line standard.
Need a quote?
Send your flow rate, head, media and connection size — we'll confirm model and price within 24 hours.
