How to Size an AODD Pump

An undersized AODD pump stalls on suction and starves the process; an oversized one wastes 20-40 SCFM of plant air, pulses harder and wears diaphragms faster. Sizing isn't hard — but missing one parameter, usually suction lift or air supply, is exactly how pumps end up wrong. This guide walks through the six numbers you need, how to read a performance curve, and two full worked examples you can copy.

Why Sizing Gets Pump Selection Wrong

AODD pumps are specified more casually than centrifugal pumps, and it shows in the field. The three most common field failures trace back to sizing decisions made at the desk:

• Undersized for suction lift — the pump is within its flow spec but the suction line is 6 m up a tank. It runs dry-ish, primes slowly, and the diaphragms wear out in weeks instead of months.
• Undersized for air supply — the compressor and piping deliver 20 SCFM but the pump wants 40 at the duty point. The pump slows, the process flow drops, and every other air user in the plant sees pressure dip.
• Oversized for the duty — a 2" pump running at 10% stroke to move 20 L/min. It pulses violently, shakes the piping, and wastes air all day.

The fix is a structured process: gather six numbers, work through them in order, and check the result against the manufacturer's curve. That process takes about ten minutes and eliminates the three failures above almost entirely.

The Six Numbers You Need Before You Start

Gather these six before looking at any pump curve:

1. Flow rate — L/min (or GPM) at the duty point, with margin.
2. Discharge head — total vertical lift + pipe friction + back pressure, in meters or bar.
3. Suction conditions — vertical lift, pipe length and diameter, and whether the line must self-prime empty.
4. Media — name, concentration, temperature, viscosity, solids size and content.
5. Connection size — inlet/outlet port size matching your existing piping.
6. Air supply — available compressed air pressure (bar/psi) and volume (SCFM/LPM).

With these six, any AODD pump can be selected in minutes. The sections below take each one in turn.

Step 1: Calculate Required Flow

Work out the duty flow in L/min. For a transfer job: volume ÷ time. For a circulation job: the system's flow requirement. For a filter press or spray application: the press manufacturer's fill spec.

Add a margin of 10-20%. AODD pumps lose flow as discharge pressure rises — a pump rated 100 L/min at 3 bar may deliver only 70 L/min at 6 bar. If your duty point sits near the top of the curve, the margin disappears. Size for the worst-case combination: maximum flow needed at maximum realistic head.

One trap: don't confuse "maximum flow" with "duty flow." Pump catalogs headline the free-flow number (zero head). The number that matters is flow at your total head — which is why Step 2 and the performance curve matter.

Step 2: Calculate Total Head

Total head = static lift + friction losses + back pressure. Convert everything to meters of liquid (1 bar ≈ 10.2 m of water; for other liquids, divide by specific gravity).

• Vertical lift — height from the liquid surface to the discharge point, in meters.
• Friction — pipe length, bends and valves. Use a friction chart for your pipe size and flow. A quick approximation for water in clean steel pipe: roughly 1 m of friction per 10 m of pipe at 1.5-2 m/s velocity — but always confirm with a chart for long runs.
• Back pressure — any pressure in the receiving tank or downstream system, converted to meters (1 bar ≈ 10.2 m).

Add the three, then confirm the selected pump's maximum head comfortably exceeds the total. The sweet spot is operating at 70-90% of the pump's maximum head — that keeps flow high while leaving stall headroom. If your total head is over 90% of the max, the pump is borderline and will stall on any disturbance (air pressure dip, viscosity swing).

Worked friction example: 25 m of 1" pipe, 4 × 90° elbows, 2 ball valves, moving 40 L/min of water. At that flow, 1" pipe velocity is about 1.3 m/s; friction is roughly 3-4 m per 100 m of equivalent length. Equivalent length with fittings ≈ 25 m + 4 × 0.8 m + 2 × 1.5 m ≈ 33 m. Friction ≈ 1.2 m. Small but real — ignore it and you silently eat 1-2 m of head.

Step 3: Check Suction Lift & NPSH

AODD pumps are self-priming, but every pump has a maximum suction lift — typically 4-7 m depending on model, diaphragm condition and media. Key rules:

• Dry suction lift is lower than wet lift. Self-priming an empty line costs lift. If the pump must prime an empty drum-to-pump line every cycle, factor in the lower dry number.
• Keep suction lines short, straight and one size larger than the inlet port. A long, skinny suction line is the #1 cause of slow priming.
• Avoid clogging strainers — use a foot valve with a large basket rather than a fine mesh strainer on the suction side.
• Viscous and volatile liquids reduce effective lift. Solvents can flash in the suction line during priming; heavy oils barely flow uphill at all.

The NPSH concept applies here too: the available net positive suction head must exceed the vapor pressure of the liquid at its temperature. For hot liquids (steam condensate, 80°C+ water), available suction head shrinks because vapor pressure rises — a pump that lifts cold water fine can cavitate on hot water. If your media is hot or volatile, keep the suction lift well under 3 m or flood the inlet.

If your suction lift exceeds ~5 m reliably, consider a flooded or gravity-fed installation, or a larger-diaphragm model with more suction capability.

Step 4: Factor in the Media

The media changes the pump's real performance in four ways:

• Viscosity — above ~500 cP, flow drops noticeably; above ~5000 cP, you need a slow-cycle or larger model. AODD pumps handle high viscosity far better than centrifugal pumps, but not for free — the flow penalty is real and the curve you were given is water-based.
• Solids — max ball-pass size must exceed your largest solid. A 1" pump typically passes ~6 mm; a 2" pump ~10-13 mm. If your slurry contains 8 mm particles, a 1" pump is already wrong regardless of flow.
• Specific gravity — heavier liquids (SG > 1) reduce maximum flow and lift proportionally. A liquid at SG 1.5 effectively cuts the head rating by a third in meters of liquid.
• Temperature — confirm the wetted materials survive your media temperature (see our Material Selection Guide). Hot media also affects suction, as covered above.

Step 5: Confirm Air Supply & Consumption

AODD pumps are air hogs when run hard. Two numbers matter:

• Air pressure — typically 2-7 bar (30-100 psi). This sets the maximum discharge pressure: a pump driven at 6 bar air can push roughly 6 bar discharge (minus internal losses), not more.
• Air volume — each model has a maximum air consumption at full speed, in SCFM or LPM. Your compressor and distribution piping must supply it with margin.

Rule of thumb at maximum duty: a 1/4" pump uses ~5-10 SCFM, a 1" pump ~10-25 SCFM, a 2" pump ~30-60 SCFM, a 3" pump ~50-90 SCFM. If plant air is limited, you can run the pump slower — less flow, less air. That's the beauty of air regulation: an AODD pump throttles with a $30 regulator, not a $300 VFD.

Air quality matters too: lubricated air extends the air valve life on many models, and dry air prevents icing in the exhaust when the pump runs at high cycle rates in cold environments. A coalescing filter and regulator (FRL) at the pump inlet is cheap insurance.

Step 6: Pick Connection Size & Material

Match the port size to your piping: 1/4", 1/2", 1", 1-1/2", 2" or 3". Going one size up on the suction side is standard practice for viscous or solids-laden duty — it reduces friction and lets the pump prime faster.

Then choose the wetted material by chemical compatibility (body + diaphragm + valves) using the decision process in our material guide. Never finalize a pump on flow numbers alone — the material pairing is what determines whether the pump survives the first month.

Reading the Performance Curve

Every AODD pump datasheet carries three curves, and buyers who only look at one get surprised:

• Flow vs head — the main curve. Flow falls as head rises, and it falls faster near the top. The usable region is the middle 60-80% of max head.
• Air consumption vs head — usually shown as SCFM against discharge pressure. Air use peaks near maximum head, not at free flow — a pump fighting a high back pressure consumes disproportionately more air.
• Flow vs air pressure — how the pump's output scales with the supply pressure you actually give it. A pump run at 4 bar instead of 6 bar delivers less flow and less head; the curve tells you how much.

The practical habit: mark your duty point (flow at total head) on the main curve, read across to the air-consumption curve for the SCFM you must supply, and confirm your plant air pressure sits at or above the curve's assumption. Ten minutes with a printed datasheet prevents most field surprises.

Plant Air System Design for AODD Duty

AODD pumps are intermittent, high-peak air users — a 2" pump can demand 60 SCFM the moment a drum empties and the pump speeds up. If the plant air system isn't designed for peaks, every AODD in the building degrades everyone else's pressure. Four design rules keep AODD duty from breaking your air system:

• Size the compressor for peaks, not averages. A plant running several AODD pumps plus tools and actuators should sum the worst-case simultaneous SCFM and add 25-30% margin. Compressors that run at 100% duty cycle wear out fast.
• Add a receiver tank. A 50-100 L receiver near the pump bank absorbs the demand spike when pumps accelerate, holding line pressure stable. This single component fixes most "air pressure dips when the pump cycles" complaints.
• Watch the distribution line diameter. A 20 m run of 1/2" tubing delivering 40 SCFM can drop 1-2 bar at the pump — and since discharge pressure equals air pressure, that's 1-2 bar of lost pumping head. Use 3/4" or 1" for runs over 15 m to any 1" or larger pump.
• Install an FRL at the pump. Filter-regulator-lubricator at the pump inlet gives you local pressure control (the throttling method of choice for AODD pumps) and, with the lubricator, extends air-valve life several-fold on models that recommend lubricated air.

Exhaust matters too. A muffler with back pressure above roughly 0.1 bar reduces pump speed and can cause ice buildup when humid air expands and cools at the exhaust. In cold, humid environments, dry the air or accept occasional exhaust icing at high cycle rates.

The economics favor doing this right: a $200 receiver and $50 FRL protect a $1,500-4,000 pump and the process it feeds. Compressor downtime while a pump runs flat-out is a plant-wide problem, not a pump problem.

Pulsation, Stall & Dampening

An AODD pump's discharge is pulsed — two strokes per cycle, with a dwell between them. Three consequences matter for sizing:

• Pulsation amplitude — at low back pressure, pulses are sharp; at higher pressure, the air cushion smooths them. For metering or spray duty, add a pulsation dampener on the discharge to smooth flow to within a few percent.
• Stall point — if discharge pressure reaches the air supply pressure, the pump stalls (diaphragm stops moving). A stall isn't damage — the pump simply waits for pressure to drop — but a system designed near the stall point will cycle on and off unpredictably. Keep at least 10-20% head margin.
• Piping resonance — a long discharge line at the pump's natural pulse frequency can resonate and shake supports. Size pipe runs with loops or flexible connectors where pulses are strong.

If your application is pressure-sensitive (filter feed, spray nozzle), size the pump to run at 60-80% of max head — that region pulses least and gives the steadiest flow.

Two Worked Examples

Example 1: Chemical Drum Transfer (water-like)

Duty: transfer 1000 L of 30% caustic soda from a drum to a day tank in 30 minutes, 3 m vertical lift, 1" piping, plant air at 6 bar.

1. Flow: 1000 L ÷ 30 min ≈ 33 L/min. With margin, target 40 L/min.
2. Head: 3 m lift + ~1 m friction + 0 back pressure ≈ 4 m total.
3. Suction: drum emptying from top — ~1 m max, fine.
4. Media: 30% caustic → PP body, Santoprene or EPDM diaphragm (see compatibility table).
5. Air: 6 bar available; a 1" pump at this duty needs ~8-12 SCFM. Fine.
6. Selection: a 1" PP AODD pump (rated ~100 L/min max) easily meets 40 L/min at 4 m head — the pump runs at about 40% of its curve, gentle on diaphragms.

30 minutes per drum, dry-run safe if the drum runs out. That's the AODD sweet spot.

Example 2: Abrasive Slurry Transfer (viscous + solids)

Duty: transfer ceramic slip at 1500 cP with 5 mm particles, 2000 L in 60 minutes, 2 m lift, 40 m of 2" discharge line with 6 elbows, receiving tank at 1 bar back pressure.

1. Flow: 2000 L ÷ 60 min ≈ 33 L/min. With margin, target 45 L/min.
2. Head: 2 m lift + ~6 m friction (high viscosity doubles friction) + 1 bar back pressure ≈ 10.2 m ≈ 18 m total.
3. Suction: 2 m flooded-ish, fine; keep suction line 2" to avoid starving the pump.
4. Media: 1500 cP + 5 mm solids → needs a pump with ball-pass > 5 mm (1-1/2" or 2" — a 1" pump at 6 mm pass is borderline), slow cycle for wear.
5. Air: 6 bar; at 18 m head (≈ 1.8 bar), the pump runs near 30% of max head — good region. Air use moderate, ~15-20 SCFM.

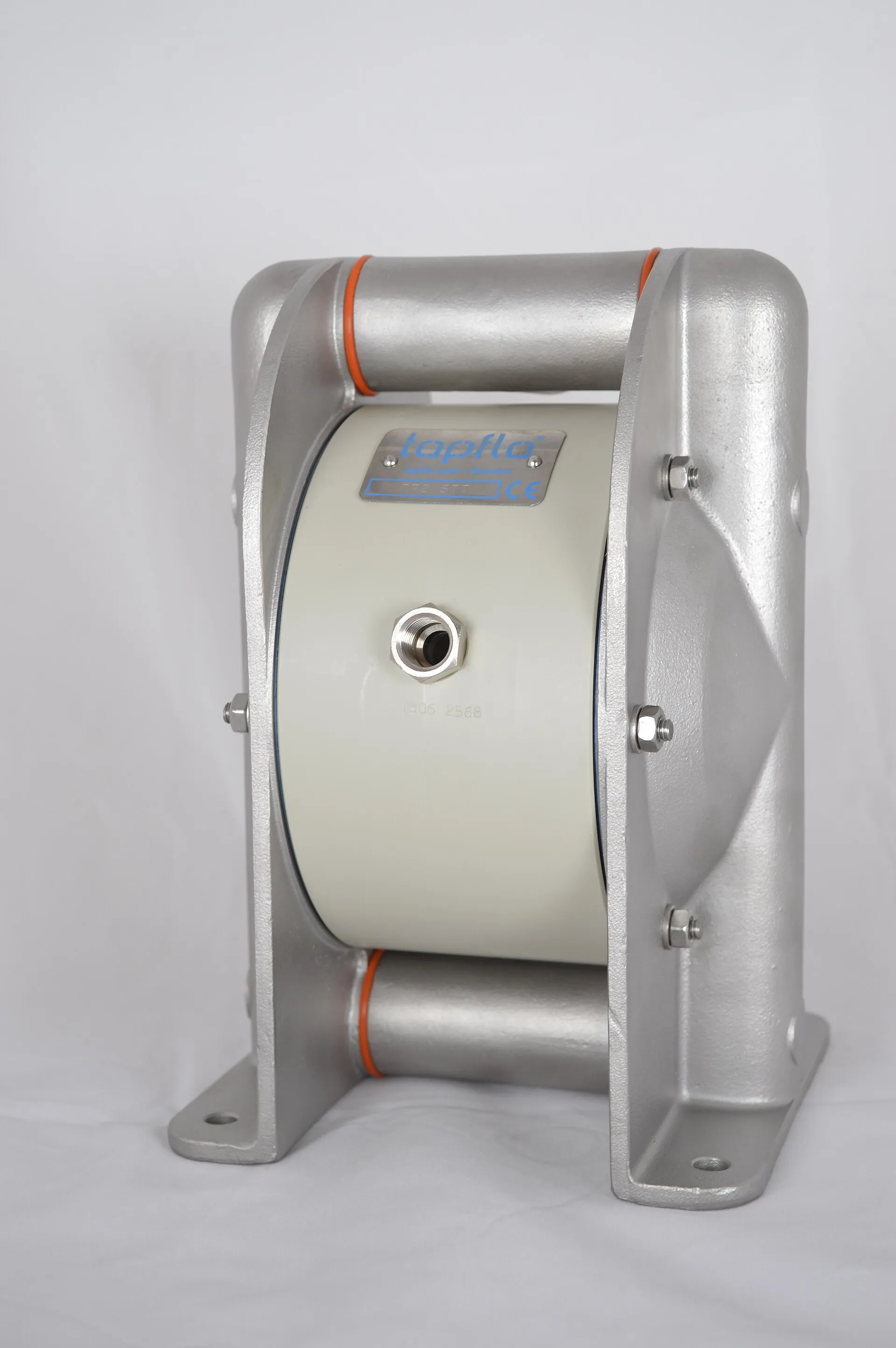

6. Selection: a 2" aluminium or PP pump with Santoprene diaphragms and stainless valve balls, run at reduced air flow to slow the cycle. The stainless balls outlast PTFE in abrasive service.

The lesson of Example 2: flow looked easy (45 L/min), but solids size forced the port size up and viscosity raised friction — three parameters, not one, drove the selection.

Common Sizing Mistakes

Quick Selection Table (Water-Based Duty)

Typical ranges — confirm the exact model's performance curve before final selection.

The 10-Point Sizing Checklist

Before you send a spec to any supplier, run this checklist — it catches the three classic failures and five quiet mistakes:

1. Flow at duty point, not free flow — with 10-20% margin on top.
2. Total head = lift + friction + back pressure, all in the same units.
3. Duty point below 90% of max head — ideally at 60-80% for stable operation.
4. Suction lift under 5 m (under 3 m for hot or volatile liquids).
5. Suction line sized ≥ inlet port, short and straight.
6. Solids pass — pump ball-pass exceeds your largest particle.
7. Viscosity check — above 500 cP, expect flow loss; above 5000 cP, go bigger or slower.
8. Air volume at the duty point — from the air-consumption curve, plus 25-30% system margin.
9. Air pressure ≥ required discharge pressure + 10-20% stall headroom.
10. Wetted materials confirmed against media, concentration and temperature.

Ten boxes, ten minutes. If any box is unchecked, the selection isn't finished — go back to that step before ordering.

FAQ

How much air does an AODD pump need?

Depends on size and speed — from ~5 SCFM for a 1/4" pump to 90+ SCFM for a 3" pump at full stroke. At partial speed, consumption drops roughly proportionally. Check the air-consumption curve at your duty point, not the headline number.

What is the maximum suction lift of an AODD pump?

Typically 4-7 m depending on model, diaphragm condition and media. Keep it below 5 m for reliable priming, and well under 3 m for hot or volatile liquids.

Can an AODD pump handle high viscosity?

Yes — up to thousands of cP, though flow drops. For very thick fluids, select a larger model or slower cycle. Above ~5000 cP, expect significant flow reduction and choose the pump accordingly.

Does back pressure matter?

Yes — total head (lift + friction + back pressure) determines where on the curve the pump operates. Too much head = low flow or stall. Too little head on a metering duty = violent pulsation.

Should I oversize the pump?

Slightly (10-20% flow margin), but never massively — an oversized pump wastes air, pulses harder and wears diaphragms faster.

What happens if the pump stalls?

Nothing breaks — the diaphragm simply stops cycling until discharge pressure drops. But a system that lives near the stall point cycles unpredictably; keep 10-20% head margin.

Do I need a pulsation dampener?

For spray, metering, or pressure-sensitive duty, yes — it smooths the pulsed discharge to within a few percent. For simple transfer, usually not.

Can I run an AODD pump dry?

Yes — that's a key advantage over centrifugal pumps. Dry-running won't damage the pump; it simply stops moving fluid. The air valve may cycle faster, so extended dry running wastes air.

Can I throttle an AODD pump?

Yes, and it's easy: throttle the air supply with a regulator, not the discharge line. Reducing air pressure or flow slows the cycle rate, cutting both flow and air consumption proportionally. Restricting the discharge instead makes the pump work against more head and stall — the wrong way to throttle.

What air pressure do I need for a given discharge pressure?

Rule of thumb: air pressure must exceed required discharge pressure by 10-20% for stall headroom. A pump delivering 5 bar discharge needs roughly 6 bar air. If your plant air sits at 4 bar, the pump cannot exceed about 4 bar discharge, period.

What's the difference between 1:1 and 2:1 AODD pumps?

A 1:1 pump delivers discharge pressure roughly equal to air pressure; a 2:1 pump uses a smaller air piston area to deliver about twice the air pressure (e.g. 6 bar air → ~12 bar discharge), at the cost of more air consumption per liter. Choose by discharge pressure requirement — most chemical transfer is 1:1 territory.

Conclusion & Next Step

Sizing an AODD pump is a six-number exercise: flow, head, suction, media, connection and air. Work them in order, check the duty point against the performance curve, and keep 10-20% head and flow margin. Two parameters — suction lift and air consumption — cause most field failures, so give both an extra look before you order. Run the 10-point checklist above and the selection is done.
