PTFE vs Santoprene vs Viton: AODD Diaphragm Materials Compared

A diaphragm that fails in four weeks costs you the part ($15-60), the labour ($50-150), the downtime (often measured in thousands of dollars per hour) — and, in the worst case, a chemical spill. The single biggest cause of early diaphragm failure is picking the wrong material for the media. This guide compares the three standard AODD diaphragm materials — PTFE, Santoprene and Viton — on chemistry, temperature, permeation, life and cost, and gives you the decision tree plus the part numbers to order.

Why Diaphragm Material Is the Most Important Buying Decision

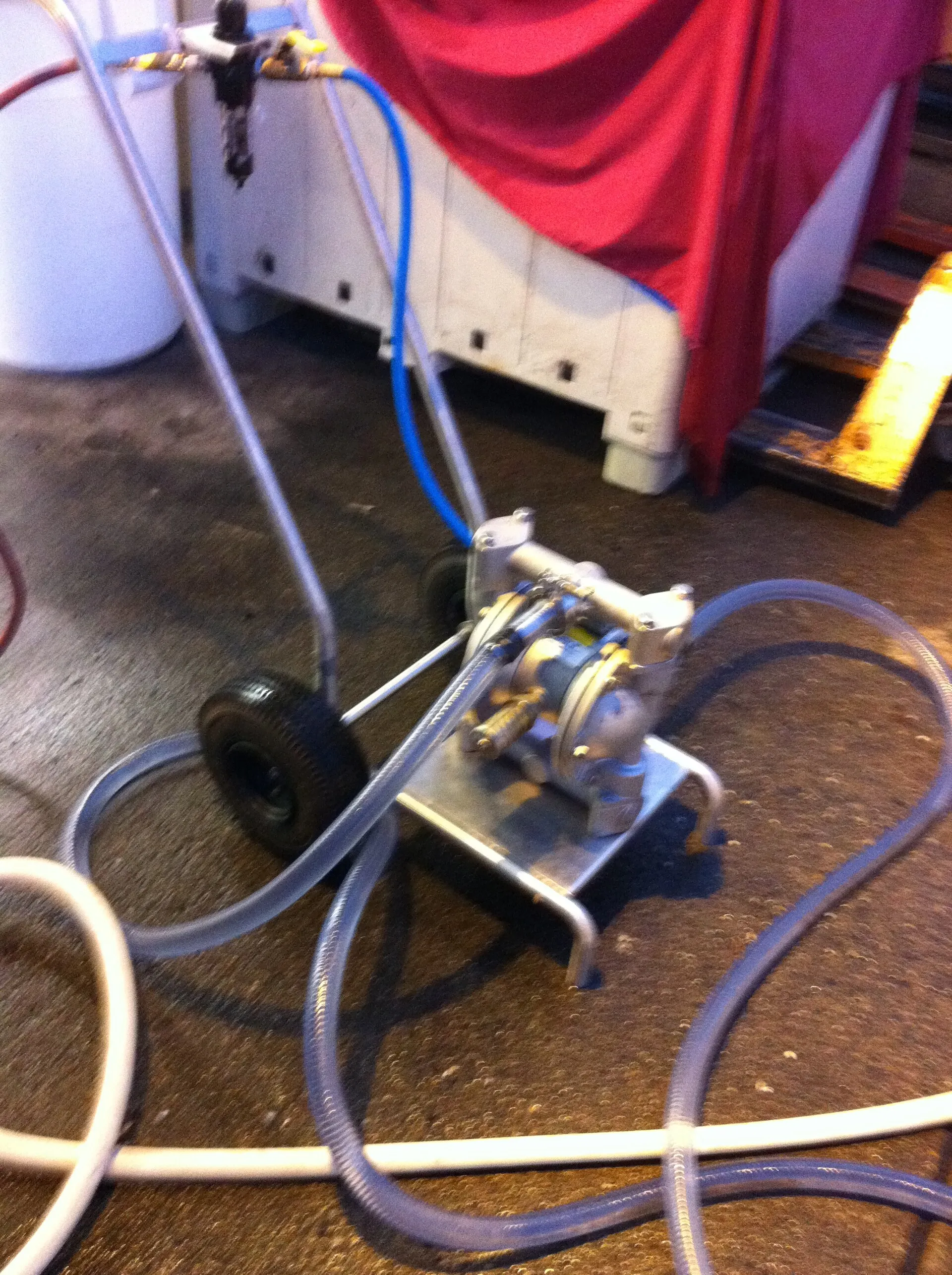

Unlike the pump body, which sits in contact with the media but does not flex, the diaphragm both touches the media and flexes tens of thousands of times per day. That combination means the diaphragm fails from three independent mechanisms, and the material choice determines how fast each one kills it:

• Chemical attack — swelling, softening or embrittlement when the media attacks the polymer itself. Wrong material = failure in days to weeks.
• Permeation — small molecules (chlorine, bromine, light solvents) migrate through the diaphragm wall and blister or delaminate it from the inside. This is the classic "the PTFE diaphragm failed anyway" story in halogen service.
• Mechanical fatigue — the diaphragm flexes until it cracks, accelerated by high stroke counts, high temperature and abrasives. This happens to every material eventually; the question is whether it happens at 3 months or 24.

Each of the three standard materials optimizes a different trade-off in this triangle — which is why "which diaphragm material?" has a real engineering answer, not a one-liner.

The Three Standard Elastomers at a Glance

One structural note: PTFE diaphragms are often composite — a thin PTFE face bonded to an elastomer backing for flexibility. Solid one-piece PTFE exists for severe halogen duty. Santoprene and Viton are homogeneous elastomers. The construction matters as much as the chemistry, covered in the diaphragm anatomy section of our working-principle guide.

PTFE: Maximum Chemical Resistance, Watch Permeation

PTFE is the default answer for "what survives everything?" — it resists almost the entire acid/base/solvent spectrum: concentrated sulfuric acid (up to 98%), nitric acid, chlorinated solvents, most organic solvents. Pump bodies in PTFE-lined or solid construction pair with PTFE diaphragms to give the widest possible chemical envelope.

• Temperature: continuous use to ~120°C in pump applications (the resin itself tolerates far more, but the pump structure and elastomer backing set the practical limit).
• The permeation caveat: PTFE is not a barrier to every molecule. Chlorine, bromine, iodine and small polar solvents permeate PTFE slowly — the molecules diffuse through the wall, condense behind it, and blister or delaminate composite diaphragms. In halogen service, specify solid one-piece PTFE and expect shorter life regardless.
• Flex life: PTFE is stiff, so diaphragms fatigue sooner at high stroke rates than Santoprene. Slow the cycle in harsh service.

Buy it when: media is aggressive (mixed acids, solvents, oxidizers) and the body is PTFE/PVDF; or when you cannot afford to experiment with chemistry.

Santoprene (TPV): The Flexible Workhorse

Santoprene is the best-value general-purpose diaphragm material. As a thermoplastic vulcanizate, it combines rubber-like elasticity with plastic processability, giving excellent flex life and abrasion resistance at the lowest price point of the three.

• Chemistry: good for dilute acids and bases, water, wastewater, many salts, and mild chemicals. Not for strong oxidizing acids, aromatics or ketones at concentration.
• Temperature: roughly -40°C to +120°C continuous, similar to Viton on the low end and better than Neoprene on both ends.
• Life: the flex-life champion — 6-24 months typical in water/mild service, sometimes years in light duty.

Buy it when: media is water, wastewater, mild chemicals, paints or slurries; or when you want the lowest cost-per-pumped-liter. It is also the standard backing for composite PTFE diaphragms.

Viton (FKM): Heat and Hydrocarbon Specialist

Viton (FKM) is the choice where heat or hydrocarbons kill other elastomers. It handles oils, fuels, lubricants, aromatics and most hydrocarbons far better than Santoprene, and keeps its properties at higher temperatures.

• Chemistry: excellent in mineral oils, diesel, gasoline, aromatic solvents; poor in ketones (acetone, MEK), esters and some brake fluids, which swell it.
• Temperature: continuous ~-20°C to +200°C in elastomer terms; in pump duty, the practical limit is usually the body material, but Viton extends the upper envelope vs Santoprene.
• Cost: the most expensive of the three per part — typically 1.5-3× Santoprene.

Buy it when: the media is oily, fuel-based or hot; or when O-rings and valve balls in the same pump are already Viton for media compatibility.

Side-by-Side: Performance & Cost Table

Price reality check from current supply: a Wilden 1" PTFE diaphragm (02-1010-52) sells at $40-60 list from OEM channels; OEM-compatible PTFE equivalents run $15-25. Santoprene versions (02-1010-56) and Viton (02-1010-53) follow the same ratio. The material choice usually matters more than the brand — a correctly-matched compatible diaphragm outperforms a mismatched OEM part every time.

Chemical Compatibility Matrix

Ratings are directional, not a substitute for a compatibility chart with your exact concentration and temperature — confirm before committing.

Decision Tree: Which Diaphragm for Your Media?

1. Is the media oily, fuel-based, or above 120°C? → Viton. (Ketones present? Re-check — Viton swells in acetone/MEK.)
2. Is the media strongly acidic, oxidizing, or a mixed-solvent stream? → PTFE — and if it contains halogens, specify solid one-piece PTFE and budget for shorter life.
3. Is the media water, wastewater, mild chemical, paint or slurry? → Santoprene — best flex life and lowest cost.
4. Still unsure? → Send the pump model, part number and a full media spec (chemical + concentration + temperature) to our engineers for a compatibility review — that's the exact conversation our technical support team runs every day.

Part-Number Cross-Reference

The same material choice maps onto specific part numbers across the four major brands. These are the numbers you'll actually search and order:

All of these are stocked as OEM-compatible replacements in our Diaphragms section — search your number, confirm the model, and order in minutes. Not sure if your number fits? The cross-reference page and the contact form both take part numbers for verification.

Buying Guide: How to Order Diaphragms Without Mistakes

Diaphragm orders fail in three predictable ways — all preventable in under two minutes:

1. Wrong size for the pump. A Wilden "1\" pump" exists in two generations (P1/P2) with different diaphragms; ARO Pro vs Pro-Flo use different part families. Always confirm the pump model stamp on the nameplate, not the port size alone.
2. Wrong material direction. The part number encodes the material — 02-1010-52 is PTFE, 02-1010-56 is Santoprene, 02-1010-53 is Viton. Ordering "the 02-1010 diaphragm" without the suffix buys a lottery ticket. Cross-check the material code against the media before ordering.
3. Composite vs one-piece confusion. If the application is halogen or aggressive-solvent service, a composite (overlay) PTFE diaphragm may fail fast even though it's "PTFE". State the service; don't just state the material.

The safe path on any marketplace or parts page: include the pump brand, model, size and current part number, and ask the supplier to confirm fitment before shipping. Our Diaphragms pages carry a "confirm model" note on every reference for exactly this reason — and our contact form accepts pump photos for verification.

FAQ

Which diaphragm material lasts longest?

In mild service, Santoprene — its flex life and abrasion resistance outlast both PTFE and Viton. In aggressive chemistry, "longest" is the one matched to your media; a mismatched material fails in weeks regardless of its other strengths.

Why did my PTFE diaphragm fail in a chlorine application?

Permeation. Chlorine molecules migrate through PTFE and blister/delaminate composite diaphragms from behind. Switch to solid one-piece PTFE (or verify your media's halogen content) and expect shorter life than in non-halogen service.

Can I use a Santoprene diaphragm in an acid application?

Only dilute acids within Santoprene's compatibility limits. Strong acids (H2SO4 >50%, HNO3) require PTFE. Check concentration and temperature on the compatibility chart before switching.

Are OEM-compatible diaphragms as good as original?

When the material direction matches (same polymer, same construction), compatible parts are functionally equivalent at 1/3 to 1/2 the price. The risk is not "compatible vs OEM" — it's wrong material, which fails either way.

How do I know which material my pump needs?

Send us the pump brand/model, the part number currently fitted (or the cross-reference) and the full media spec — chemical, concentration, temperature. Our engineers confirm material direction and fitment within 24 hours.

Conclusion & Next Step

PTFE for chemistry, Santoprene for value and flex life, Viton for heat and hydrocarbons — three materials, one decision tree, and a set of part numbers that map directly onto the pump on your skid. Get the material right and the diaphragm becomes a scheduled, predictable cost; get it wrong and it becomes an emergency.

Search your part number in the Diaphragms section — if the material direction is listed (PTFE / Santoprene / Viton), you can order the right one in minutes. Unsure? Send the pump model and media spec to our contact form for a free compatibility review, and we'll confirm fitment within 24 hours.
