AODD Pump Troubleshooting: 12 Faults, Root Causes & Field Fixes

An AODD pump that loses flow, stalls, or hunts costs a production line its throughput — and most failures follow one of three patterns you can diagnose in under ten minutes. This guide walks the twelve most common faults, maps each to its root cause, and gives the cheapest-first fix. No voodoo: if you can read a symptom, you can find the part. Keep it next to the pump — it's the difference between a 20-minute fix and a day of downtime.

Why Fast Diagnosis Pays

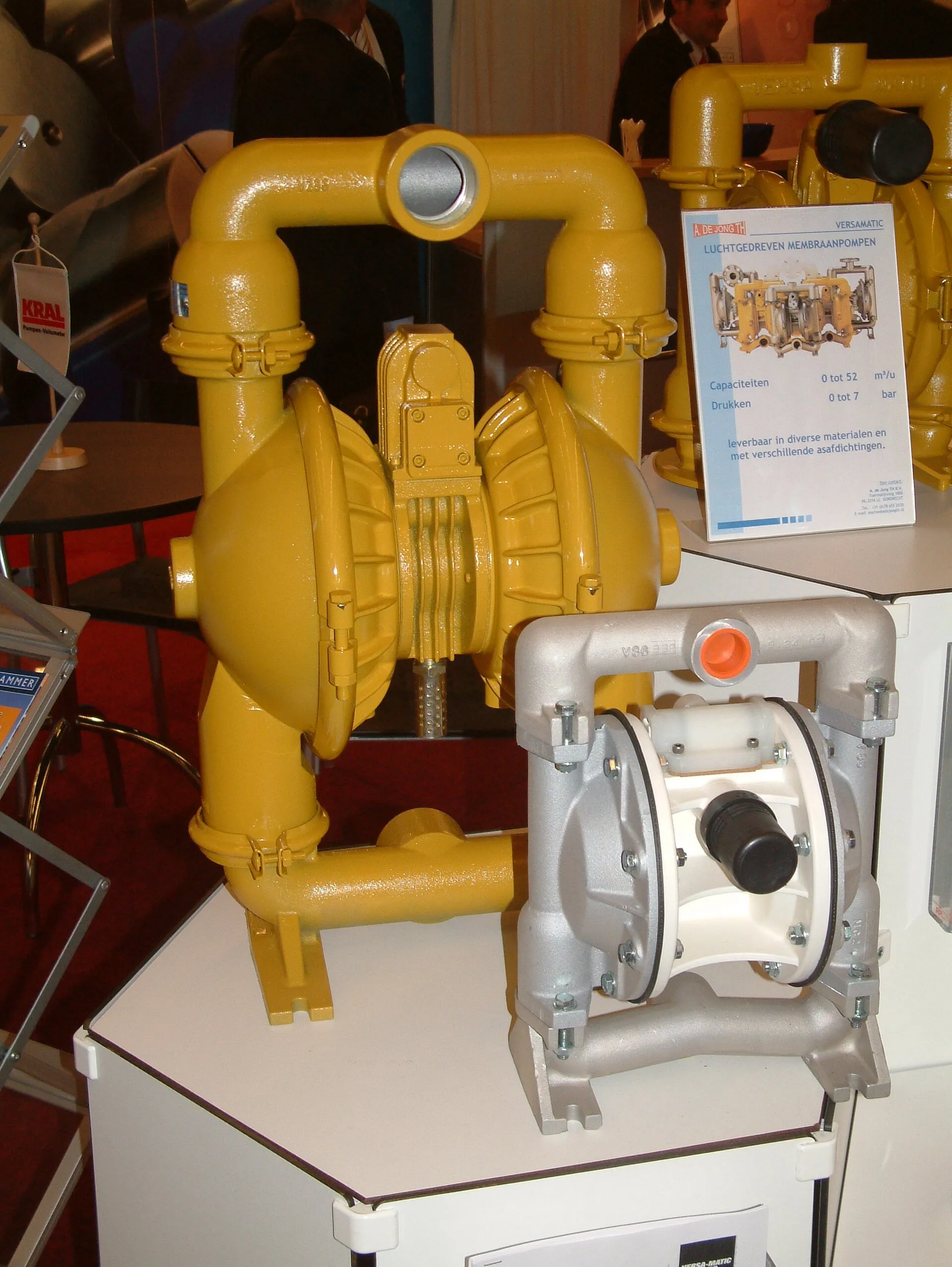

The AODD's simplicity is its diagnostic gift: roughly a dozen components, two of which (diaphragms and valve balls) account for the vast majority of wear-driven failures, plus the air valve kit on the air side. A plant that can diagnose in minutes instead of swapping parts blind saves both hours and money — a misdiagnosed diaphragm swap is $15-60 of parts plus an hour of labour, and it buys nothing if the real fault was a clogged strainer.

The economics of fast diagnosis are concrete: a 2" pump moving 150 L/min on a paint line that goes down costs more per hour than the pump costs new. The ten-minute diagnostic sequence at the end of this guide is designed to be run by whoever is at the pump, with no special tools beyond a pressure gauge and a flashlight.

Flow Loss: The Most Common Complaint

Fault 1 — Flow dropped, pump sounds normal

If the stroke sounds regular but output is down, the problem is almost always on the fluid side. Work this order:

1. Clogged suction strainer — the #1 cause. Remove and inspect; a strainer that looks 50% blocked can cut flow by half.
2. Worn diaphragm — a diaphragm that has fatigued, blistered or split lets fluid pass from the pumping chamber back to the air side or between chambers, dropping output. Inspect for visible cracking, swelling or pin-holes.
3. Worn valve balls / seats — fluid slips back through the check valves on every stroke. This is the classic "pump cycles but barely moves fluid" signature.
4. Suction line restriction — kinked hose, collapsed liner, closed valve. Check the full suction run, not just the strainer.

The cheap test: watch the discharge at full stroke. If flow is steady but low, suspect strainer or suction restriction. If flow pulses erratically with occasional spit-back, suspect check valves. If flow drops progressively over days, suspect diaphragm fatigue.

Fault 2 — Flow drops at higher discharge pressure only

If the pump delivers fine at low head but starves as back pressure rises, the air supply is the suspect — air pressure at the pump is below what the duty point needs. Check the regulator setting, then measure pressure at the pump inlet with a gauge while running (a long thin line can drop 1-2 bar). Remember: discharge pressure cannot exceed air pressure; a 4 bar air supply cannot deliver a 5 bar discharge, no matter what the datasheet says.

Stall & Cycling Problems

Fault 3 — Pump stalls at lower head than before

A pump that used to push 5 bar and now stalls at 3 bar has one of two problems: air pressure loss (regulator drift, leaking line, clogged filter) or an air valve that's losing seal. Test by raising air pressure 0.5-1 bar — if the stall point rises, it's an air-supply issue; if it doesn't move, the air valve spool or seals are worn and the valve kit is due.

Fault 4 — Pump "hunts" or cycles irregularly

Hunting — an irregular, hesitant stroke rhythm — is the classic air valve symptom. The spool and its seals wear with millions of cycles; when seals harden or the spool scores, the valve hesitates mid-shift. Replace the air valve kit (typically $35-55 compatible vs $80-130 OEM) and the rhythm returns. A hunting pump that's left alone eventually becomes a stalling pump.

Fault 5 — Pump cycles fast with little or no discharge

Fast cycling with no output is the signature of valve ball / seat failure — the fluid is shuttling back and forth inside the pump instead of moving out. If it started suddenly, a ball may have split, chipped or stuck open on debris. If it started gradually, the balls and seats have worn together. Replace balls and seats as a set; mixing a new ball with a worn seat rarely seals properly.

Air-Side Leaks & Exhaust Issues

Fault 6 — Air bubbles in the discharge

Air in the fluid means a suction-side leak or a failing diaphragm. Check in order:

• Suction manifold bolts — loose bolts on plastic bodies (thermal creep) let air in; re-torque to spec.
• Suction gasket — a hardened or pinched gasket draws air; replace.
• Diaphragm leak — a split diaphragm lets air cross into the fluid side; bubbles in the discharge plus a rising air consumption point to this.

Fault 7 — Exhaust spits moisture or ices up

Moisture at the exhaust is wet air supply, not a pump fault — install a dryer or drain the receiver regularly. Icing happens when humid air expands and cools at the exhaust on fast cycles; a warmer ambient or a drier air supply fixes it. A muffler with high back pressure (above ~0.1 bar) also slows the pump and worsens icing — check the muffler isn't clogged with oil residue.

Fault 8 — Pump runs slow despite full air pressure

Full pressure but slow cycling points to air flow restriction, not pressure: a clogged filter element, a too-small line, a kinked hose, or a muffler plugged with oil. Measure pressure at the pump while running — if it reads near zero under load, the restriction is upstream. If pressure holds but the pump still crawls, the muffler is the likely culprit.

Diaphragm Failure Patterns

Fault 9 — Diaphragm fails within weeks in chemical service

A diaphragm that dies young in chemical duty is almost never a quality problem — it's a material mismatch. Three patterns:

• Chemical attack — swelling, softening or dissolving: the elastomer isn't rated for the media at that concentration/temperature. Match the elastomer to the chemistry (see the material guides).
• Permeation blistering — small blisters under the PTFE face of a composite diaphragm, typical in halogen (chlorine/bromine) and light-solvent service. Switch to a one-piece (solid) PTFE diaphragm, which is immune to layer separation.
• Mechanical fatigue — clean cracking at the flex point after normal life: expected wear. Track replacement intervals to plan spares.

Realistic life ranges: aggressive chemical service 3-6 months, light water service 12-24 months. If yours fails far outside these bands, the material or the application — not the part — is the problem.

Valve Ball & Seat Wear

Fault 10 — Chipped, scored or flattened balls

Valve balls wear by impact and abrasion. Chips and scoring come from abrasive solids in the media — upgrade to stainless or ceramic balls for slurry duty. Flattened or "worn flat" balls come from years of seating — replace with the matching seat. A single worn ball can drop pump efficiency 10-20% because fluid slips back through that one check valve every stroke.

Priming & Suction Problems

Fault 11 — Pump won't prime

AODD pumps self-prime, but there are limits. Work this order:

1. Suction lift too high — keep under 5 m (under 3 m for hot or volatile liquids; vapor pressure kills suction).
2. Dry check valves — after long idle, balls can stick to the seats. Rock the pump or tap the valve chambers to free them.
3. Leaking suction line — air enters, prime is lost. Tighten fittings, replace gaskets.
4. Worn balls/seats — if it primes sometimes but not reliably, the check valves are marginal; replace as a set.

Fault 12 — Pump loses prime during operation

Losing prime mid-run is a suction-side leak, a failing check valve, or cavitation from a starved suction. If it happens when the tank level drops, the suction line may be too long or the strainer partially blocked. If it happens at high speed, slow the pump — the ball may not seat fast enough at very high cycle rates.

The 8-Step Diagnostic Sequence

Run this in order; it resolves ~90% of AODD field faults without swapping a single part blindly:

1. Listen — regular rhythm vs hunting vs fast-no-output tells you air-side vs fluid-side.
2. Check air pressure at the pump (not at the regulator) with a gauge under load.
3. Check the muffler — clogged mufflers mimic dozens of faults.
4. Inspect the suction strainer — clean or replace if it looks 30%+ blocked.
5. Feel the discharge pulse — strong steady pulse = pump healthy; weak erratic = check valves or diaphragm.
6. Inspect diaphragms — look for cracks, blisters, swelling (5-minute visual, access permitting).
7. Inspect valve balls & seats — chips, scoring, flattening.
8. Test with raised air pressure — if the stall point moves with air pressure, it's air-side; if not, it's fluid-side.

Every symptom in this guide maps to one of three parts: diaphragms, valve balls & seats, or the air valve kit. Keep a set of each on the shelf and ~90% of AODD field repairs become a one-hour job.

Installation & Torque Mistakes That Cause Failures

A surprising share of "pump failures" are installation errors that damage parts weeks later. The three most destructive:

• Over-torqued manifold bolts on plastic bodies — PP and PVDF bodies creep under excess bolt load; the gasket crushes, the body cracks at the boss, and the pump weeps at the manifold. Torque to the manual's spec — usually far lighter than intuition suggests — and re-torque warm on plastic pumps.
• Misaligned diaphragm stack — assembling the diaphragm with the outer plate off-centre or the shaft nut unevenly torqued pinches the diaphragm at the hub and kills it in weeks with a tell-tale hub crack. Center the stack, torque the nut evenly, and use a thread locker on the shaft nut per the manual.
• Oversized suction pipe with undersized fittings — a 2" pump fed through a 1" ball valve at the tank is a flow-restriction trap; the pump runs fast, cavitates, and wears check valves prematurely. Match the full suction run to the port size or larger.

All three are free to avoid and expensive to learn — each one shows up as one of the twelve faults above, months after the installation.

Case Study: A 20-Minute Field Diagnosis

A paint line reported its 2" PTFE pump "running but starving" — output down roughly 40%, no alarms. Following the sequence above:

1. Listen: regular rhythm, no hunting — air side healthy.
2. Air pressure at pump: 6.2 bar under load, matches regulator — air side ruled out.
3. Muffler: clean.
4. Suction strainer: 60% blocked with dried paint skin — cleaned in place.
5. Re-test: flow returned to ~95% of baseline immediately.

Total: 20 minutes, zero parts, zero cost. The plant had previously scheduled a full rebuild ($200+ in parts and a day of labour) on a pump that only needed its strainer rinsed. This is the pattern worth internalizing: the cheap, boring causes fail first — check them before touching the wear parts.

Repair Kits & Rebuild Economics

When a rebuild is genuinely due, the parts bill is small relative to the labour — so buy the complete set, not the single part. A proper AODD rebuild consists of:

• Diaphragm pair (material matched to media)
• Valve balls & seats (all four check valves, matched set)
• Air valve kit (spool seals, O-rings, gaskets)
• Manifold O-rings / gaskets

OEM-compatible economics: a full rebuild set runs roughly $60-120 vs $200-400 in OEM parts — and a rebuilt pump typically returns to full spec. Track the rebuild interval in your PM system; the trend tells you whether the application (not the pump) is wearing parts early, which is the signal to revisit material selection.

Prevention: The 5-Minute Weekly Check

The pumps that fail most are the ones nobody looks at. A five-minute weekly check prevents most of the twelve faults above:

• Exhaust — oil residue, moisture, unusual noise
• Air filter — replace when visibly loaded
• Suction strainer — quick rinse
• Manifold bolts — snug (not over-torqued, especially on plastic bodies)
• Discharge flow vs the week before — a 10-15% drop is the early warning for diaphragm or ball wear

Log the flow reading. Trends catch problems weeks before failures — and a logged baseline turns every future diagnosis from guesswork into a comparison.

Maintenance Planning by Duty

Preventive maintenance is a schedule, not an event. The right interval depends on duty — here's a practical starting table based on field norms:

Two planning rules make this table work in practice. First, log every flow reading and every rebuild — a one-line entry per week turns the table into a site-specific forecast within two quarters. Second, stock the rebuild set before the rebuild is due; the pump that dies on a Friday with no spares is the one that costs a weekend of production. A stocked diaphragm pair, ball/seat set and air valve kit is a small shelf footprint for a large insurance effect.

For plants running several pumps, kitting is the lever: pre-assembled rebuild kits per pump size cut rebuild labour roughly in half and remove the "which part number was it again?" delay. Our spare parts kitting service builds per-model kits from the same verified part numbers on the reference pages.

Rebuild vs Replace: The Decision Framework

Every maintenance engineer eventually faces it: the pump is down, the body is scarred, and the rebuild quote sits next to the new-pump quote. Use this framework:

• Rebuild when — the wetted body is sound (no cracks, no deep chemical attack), the cost is under ~60% of a new pump, and the duty is unchanged. A rebuilt pump at $60-120 in parts is the clear winner.
• Replace when — the body is cracked or warped (plastic bodies after thermal events), the media changed to something the current body material can't handle, or the rebuild cost approaches the new-pump price.
• Upgrade instead of replace when — the application changed: a pump that kept stalling at higher back pressure may be a size too small (a size up is cheaper than an air-system upgrade), and a pump failing diaphragms in halogen service may just need a one-piece PTFE conversion.

The common mistake is replacing a pump whose real problem is a mis-sized air supply or a material mismatch — the same problem comes back in the new unit. Diagnose the application, not just the pump, before spending.

FAQ

How often should diaphragms be replaced?

3-6 months in aggressive chemical service, 12-24 months in light water service. Replace on condition: flow drop, stall, visible cracking — or on a preventive schedule with a logged baseline.

Can I replace one diaphragm or must I replace the pair?

Always replace as a pair — an old and new diaphragm on the same shaft create unequal stroke forces and can stress the air valve and shaft seals.

Why does my pump stall at high back pressure?

Discharge pressure cannot exceed air pressure. If air pressure is adequate and it still stalls, the air valve kit is likely worn — rebuild it.

Is it normal for an AODD to pulse?

Yes — two alternating chambers produce a pulsed discharge by design. If the pulse is irregular or the pump hunts, that's the air valve; add a pulsation dampener only if your process needs smooth flow.

What parts should I keep in stock?

A diaphragm pair, a valve ball & seat set, and an air valve kit cover ~90% of field repairs. All are available as OEM-compatible parts in our parts section.

My pump is new but flows less than the datasheet. Normal?

Datasheet flow is at free discharge; real installations lose flow to suction lift, back pressure, line friction and viscosity. Compare against the performance curve at your actual duty point — if you're 10-15% below curve at the duty point, then investigate.

Can I fix a leaking diaphragm or should I replace it?

Replace. A diaphragm that leaks has fatigued, blistered or split — no repair restores its flex life. Trying to patch a wetted diaphragm is a leak-and-downtime guarantee.

How long should an air valve kit last?

Roughly 10-20 million cycles depending on air quality — with dry, filtered air at the top of the range, wet or oily air at the bottom. When the pump starts hunting or the stall point drops, the kit is telling you it's due.

Why is my pump louder than it used to be?

Rising exhaust noise usually means air is leaking past a worn air valve spool, or the muffler is degrading. Check the muffler first (cheapest), then the valve kit. A sudden loud bang-like report can mean a diaphragm has split — shut down and inspect.

Why does my pump cycle slower in winter?

Cold air is denser and moisture in the supply can freeze at the exhaust on expansion, restricting the cycle. If the pump slows only in cold weather, check for exhaust icing first, then consider a dryer on the air supply — the pump itself is usually fine.

Air consumption suddenly up — what does it mean?

A pump that suddenly drinks more air is either cycling faster than it should (check the discharge — a burst or missing line removes back pressure) or losing air internally through a worn valve spool or a split diaphragm. Both show up as rising SCFM at the same duty point.

Conclusion & Next Step

Twelve faults, three root-cause families: diaphragms, check valves, air valve. Diagnose by symptom in the order above, replace the cheapest-first part, and keep spares on the shelf. The AODD's simplicity means most repairs are an hour and a socket set away — if you know what to look for. And because the parts are cheap and standard, the discipline that pays is diagnosis, not replacement: the right part fitted once beats three wrong parts fitted in a panic.

If a fault resists the sequence — unusual vibration, unexplained media contamination, or a failure that repeats after a full rebuild — that's the moment to bring in a second pair of eyes with the pump's full history. A supplier that asks for the duty details rather than quoting blind is the one worth sending the job to.
